| Video specifications |
Video Input Feeds |
4 simultaneous |
|
HDMI Inputs |
3 type-A (HDMI1.4b) |
|
USB (UVC) Inputs |
1 multi-function USB-C for UVC video |
|
HDMI Outputs |
1 configurable – Preview, Program, Multiview, Inputs 1 - 4 |
|
Video Input Frame Rates |
1920x1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HDMI only) 1920x1080i: 25, 29.97, 30 |
|
Video Output Frame Rates |
1920x1080p: 24, 25, 30, 50, 60 |
|
Video Streaming Standards |
1920x1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 |
|
Video Engine Colour Space / Bit Depth |
4:4:4 RGB / 8-bit |
|
HDMI Input Colour Space / Bit Depth |
4:4:4 RGB, 4:4:4 YUV, 4:2:2 YUV / 8, 10, 12-bit |
|
USB Input Colour Space |
4:2:2 YUV, 4:2:0 YUV (NV12) |
|
HDMI Output Colour Space / Bit Depth |
4:4:4 RGB, 4:4:4 YUV / 8-bit |
|
USB Output Colour Space / Bit Depth |
4:2:2 YUV / 8-bit |
|
Format and Frame Rate Converters |
On all HDMI and USB inputs |
|
NDI Protocols |
Single TCP, Multicast |
|
NDI Formats |
Hx2, Hx3 |
|
NDI Video Codecs |
H.264, HEVC/H.265, 4:2:0, 8-bit |
|
NDI Audio Codecs |
AAC-LC, L-PCM Stereo 2.0 at 48kHz |
|
NDI Interfaces: |
Wired Ethernet |
| SWITCHING SPECIFICATIONS |
Total Number of Layers |
9 simultaneous in Preview and Program |
|
Downstream Keyers |
2 (overlays and logo) |
|
Chroma Keyers (Green and Blue) |
2 |
|
Luma Keyer |
1 |
|
Media Players |
2 simultaneous |
|
Transitions |
SMPTE wipes, dip and fade |
|
True Preview |
Display complete scenes and overlays simultaneously in preview and program |
|
Generated Borders |
All scenes |
|

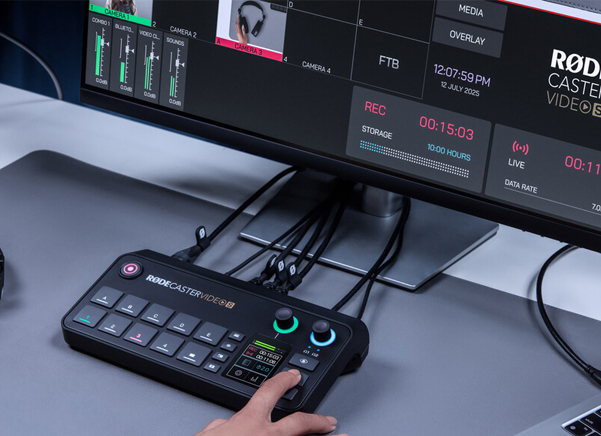

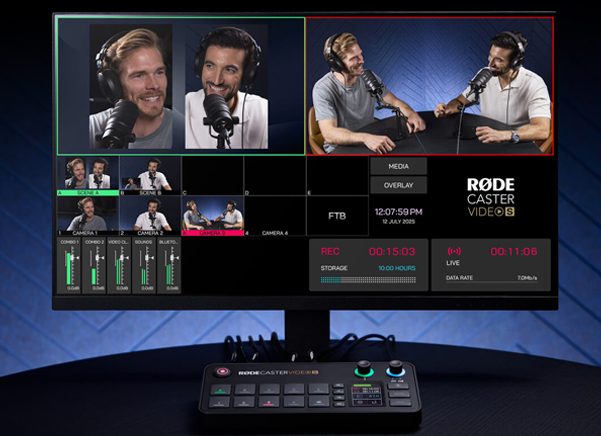

Multiview |
Program and preview |
|
|
Live inputs, scene and media thumbnails |
|
|
Audio mixer and channel status |
|
|
Recording, network and storage status |
|
|
Run time, date and time information |
|
Media Player |
24GB on-board storage |
|
|
Videos: MP4 |
|
|
Images: PNG, JPG |
|
|
Audio: WAV |
|
Bluetooth |
5.3 (for stereo audio input or phone calls |
| Audio specifications |

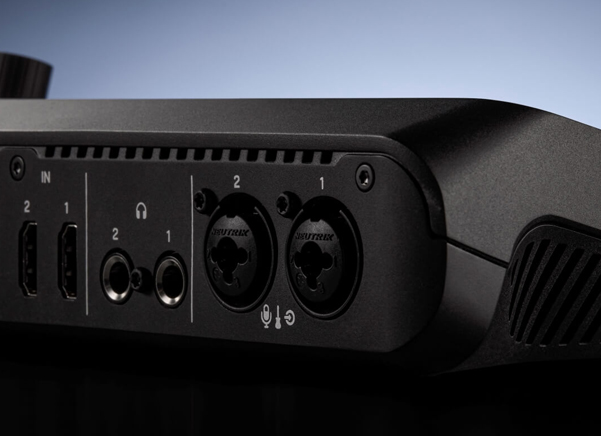

Analog Audio Inputs |
2 combo jacks (microphone, line or instrument) with Revolution Preamps™ |
|
Wireless Audio Inputs |
2 Series IV wireless receivers |
|
Digital Audio Inputs |
USB 1: 2-in/2-out or multichannel (20-in) output |
|
|
USB 1 Chat (uses USB 1 port): 2-in/2-out with mix-minus |
|
|
USB 2: 2-in/2-out with MFi support |
|
|

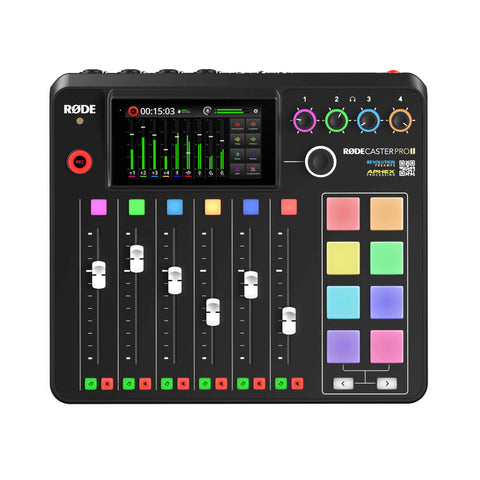

USB 4: compatible with RØDE USB microphones and RØDECaster Pro II and Duo |
|
Analog Audio Outputs |
2 headphone outputs (1/4-inch) |
|
Audio Processing |
APHEX® VoxLab™ Processing: per channel |
|
|
Advanced APHEX® granular processing on each channel: Compressor, Equaliser (EQ), De-esser, Panning, Noise Gate, High-pass Filter, Aural Exciter™, Big Bottom™ |
|
Preamps |
Frequency range: 20Hz – 20kHz |
|
|
Input gain: up to 76dB Input |
|
|
Equivalent Input Noise: -131.5dBV (A-weighted) |
|
Streaming Sample Rate / Bit Depth |
48kHz / 32-bit |
|
Recording Sample Rate / Bit Depth |
48kHz / 24-bit |
|
Audio Mixer |
18 possible audio sources (9 stereo channels simultaneously): combo 1 and 2 (can be combined for stereo), wireless 1 and 2, video clips, sounds, HDMI 1, 2 and 3 (each can be split for two mono), Bluetooth, 3 USB audio interfaces (computers), 1 hosting USB audio device (USB microphone) |
|
|
11 Outputs with Custom Routing: live mix, headphone 1, headphone 2, recording, USB 1 Chat, USB 1, USB 2, USB 4, Bluetooth, HDMI A, Network |
|
|
Note: Each output can be independently configured with custom level, mute status and level offset settings for each of the 9 inputs |
| Streaming, recording and software specifications |
Direct Streaming |
Real Time Messaging Protocol (RTMP/RTMPS) over Ethernet or Wi-Fi |
|
Supported Platforms |
Youtube Live |
|
|
Twitch Live |
|
|
Facebook Live |
|
|
Twitter/X Live |
|
|
Custom server |
|
Network |
Ethernet (10/100/1000 BaseT) and Wi-Fi 6 (2.4 and 5GHz) for streaming, configuration, remote control with computer and over-the-air updates |
|
RØDECaster App Companion Software |
Scene builder: advanced construction of scenes and remote control of device |
|
|
Auto-switching: configuration of automatic switching based on audio input |
|
|
Audio mixer: advanced configuration and control of audio sources, processing and routing |
|
|
Stream profiles: configuration for streaming settings and profiles |
|
|
Device configuration: advanced settings and customisations |
|
Storage Media |
External USB mass storage device (exFAT format) for recordings |
|
Video Recording |
Program feed as H.264/AVC MP4 file with embedded AAC stereo mix |
|
Isolated (ISO) Video Recording |
4 video inputs and 1 Program feed as independent H.264/AVC files (up to 1080p30) |
|
Audio Recording |
Stereo mix WAV audio file |
|
Multitrack Audio Recording |
9 independent stereo WAV audio files |
|
Compatible Operating Systems |
macOS 11 or later Windows 10 Version 1803 or later, Windows 11 |
| Power and mechanical specifications |
Power Supply Requirements |
USB-C PD 45W, 20V 2.25A |
|
Weight (grams) |
875 |
|
Dimensions (millimetres) |
Length: 253.5 |
|
|
Width: 128.4 |
|
|
Height: 60.2 |
