Home Studio & Live sound Audio interfaces

Fender Quantum HD 8 USB-C audio interface

Name: Fender Quantum HD 8 USB-C audio interface
Brand: Fender
Availability: OutOfStock

Brand: Fender SKU:

RRP

ex. VAT

Add to basket

26 x 30 USB-C interface with MAX-HD preamps and 32-bit/192 kHz converters
Front Fender instrument inputs with Auto Gain for fast guitar/bass recording
16 ADAT channels, S/PDIF, MIDI, and ADAT preamp standalone mode
Re-amp outputs for creative amp and pedal experimentation
DSP monitor mixer and loopback for streaming and recording
Control preamps, phantom power, and routing via Studio Pro or Universal Control
Complete Fender Amp & FX pack now FREE with Fender Quantum Interfaces

Product information
Specifications
Videos
Finance options

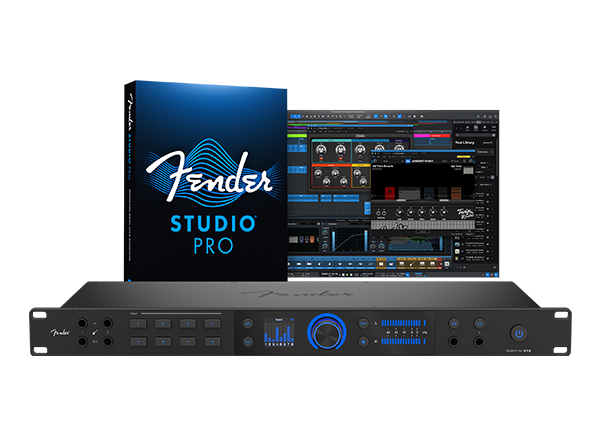

Introducing the Fender Quantum HD 8 USB-C audio interface

The Fender Quantum HD 8 is a high-performance USB-C audio interface designed for demanding multi-instrument recording, full-band tracking, and professional content creation. Offering an expansive 26 x 30 channel configuration, it provides the connectivity and headroom needed to manage complex sessions with confidence. Equipped with MAX-HD mic preamps and high-resolution 32-bit / 192 kHz converters, the HD 8 captures instruments, vocals, and line-level sources with exceptional clarity, depth, and studio-grade accuracy, ensuring every performance is preserved in full detail.

Ultra-low-latency drivers deliver responsive monitoring and smooth workflow even in larger sessions, while the expanded I/O makes it easy to grow your studio as your needs evolve. Front-facing Fender instrument inputs deliver clean, authentic tone for guitar and bass, Auto Gain streamlines setup by optimizing input levels, and dedicated re-amp outputs open up new creative possibilities for tone shaping and experimentation. Powerful yet intuitive, the Quantum HD 8 provides the flexibility and performance required to handle advanced recording setups without sacrificing speed or reliability.

Say hello to Fender Studio

Fender Studio brings Fender’s modern recording tools together into a single, connected ecosystem designed for musicians, producers, and creators at every stage. At its core is Fender Studio Pro 8, a powerful evolution of the Studio One platform, enhanced with Fender-native amp and effects modelling, streamlined workflows, and intelligent tools that support faster writing, recording, and mixing. From authentic Mustang and Rumble amp sounds to advanced MIDI, sampling, and AI-assisted features, the system is built to move ideas from inspiration to finished track with minimal friction.

A free Fender Studio app extends the experience to mobile and entry-level users, allowing projects to move seamlessly between devices as skills and ambitions grow. Together, Fender Studio creates a flexible, future-ready recording environment that reflects Fender’s heritage while meeting the demands of modern music production.

Precision recording with MAX-HD preamps

Every detail is preserved with MAX-HD mic preamps providing up to +75 dB gain and ultra-transparent recordings. Combined with 32-bit / 192 kHz converters, the HD 8 delivers high-resolution audio across all channels, whether recording vocals, instruments, or line-level sources, ensuring professional clarity in every session.

Flexible I/O and expanded connectivity

Expanded digital I/O includes 16 ADAT channels, S/PDIF inputs and outputs, MIDI I/O, and ADAT preamp standalone mode. Multiple TRS line outputs and re-amp connections allow complex routing and modular setups, while front-facing instrument inputs make connecting guitar or bass fast and convenient.

Streamlined control and workflow

Control preamp gain, phantom power, and outputs via Fender Studio Pro or the Universal Control app for desktop and mobile. DSP monitor mixing and loopback routing simplify recording, streaming, and podcasting, while a full-colour high-resolution display with illuminated push encoder keeps navigation intuitive. The included Fender Studio Pro perpetual licence provides a complete, ready-to-use recording solution.

Complete Fender Amp & FX pack now FREE with Fender Quantum Interfaces

For a limited time, get the Complete Fender Amp & FX pack for FREE in the Fender Studio app when you buy an eligible Fender Quantum or AudioBox Go Audio Interface—A. Register your eligible product at my.fender.com and download the free Fender Studio app to claim.

Unlock the Complete Fender Amp & FX Pack in the Fender Studio app at no cost and access a full collection of authentic Fender amp models and effects for crafting inspiring guitar and bass tones.

Offer valid only for customers who purchase any qualifying Fender audio interface between March 11, and May 31st, 2026.


Colour	Black
Series	Quantum
Electronics
Headphone Jack	Two - 1/4" TRS Female Stereo
Connectivity	USB-C
Voltage	230V UK
Phantom Power	+48 VDC
Performance
Digital Audio Bit Depth	32-bit
Digital Audio Dynamic Range	124 dB
Inputs
Instrument Inputs Dynamic Range	111 dB (A-Weighted, Minimum Gain)
Instrument Inputs Frequency Response	20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Instrument Inputs Gain Range	75 dB
Instrument Inputs Maximum Level	+21 dBu (Unbalanced, Minimum Gain)
Line Inputs Dynamic Range	118 dB (A-Weighted, Minimum Gain)
Line Inputs Frequency Response	20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Line Inputs Gain Range	± 10 dB
Line Inputs Impedance	10K Ohms
Line Inputs Maximum Level	+18 dBu (Balanced, Minimum Gain)
Line Inputs Total Harmonic Distortion	0.001% (1 kHz, Minimum Gain)
Microphone Input Connection Type	XLR Female (Combo), Balanced
Microphone Preamp Dynamic Range	116 dB (A-Weighted, Minimum Gain)
Microphone Preamp Equivalent Input Noise	-130 dBu (Maximum Gain, 150 Ohms, 20 kHz BW, A-Weighted)
Microphone Preamp Frequency Response	20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Microphone Preamp Gain Control Range	75 dB
Microphone Preamp Input Impedance	1600 Ohms
Microphone Preamp Maximum Input Level	+18 dBu (Balanced, Minimum Gain)
Microphone Preamp Total Harmonic Distortion	0.002% (1 kHz, Minimum Gain)
Outputs
Headphone Outputs Dynamic Range	118 dB (A-Weighted)
Headphone Outputs Frequency Response	20 Hz to 20 kHz, +/- 0.3 dB (Unity Gain, Reference 1 kHz)
Headphone Outputs Impedance Working Range	33 Ohms
Headphone Outputs Maximum Output	11 dBu (50 Ohms)
Headphone Outputs Total Harmonic Distortion	0.001% (1 kHz)
Line Outputs Connection Type	1/4" TRS Female
Main And Line Outputs Dynamic Range	123 dB (A-Weighted)
Main And Line Outputs Frequency Response	20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
Main And Line Outputs Maximum Level	+18 dBu (Balanced)
Main And Line Outputs Output Impedance	51 Ohms
Main And Line Outputs Total Harmonic Distortion	0.001% (1 kHz, +4 dBu)
Main Outputs Connection Type	1/4" TRS Female
Hardware
MIDI IO	5-Pin Female DIN
Word Clock IO	BNC Connector, 4.5 Vpp @ 75Ω Load
Dimensions
Width	30.48 CM
Height	30.48 CM
Depth	8.6" (218 mm)
Weight	5.56 KG
Included Accessories	DB-9 breakout cable, 1.5M USB-C to USB-C cable

Colour

Black

Series

Quantum

Electronics

Headphone Jack

Two - 1/4" TRS Female Stereo

Connectivity

USB-C

Voltage

230V UK

Phantom Power

+48 VDC

Performance

Digital Audio Bit Depth

32-bit

Digital Audio Dynamic Range

124 dB

Inputs

Instrument Inputs Dynamic Range

111 dB (A-Weighted, Minimum Gain)

Instrument Inputs Frequency Response

20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)

Instrument Inputs Gain Range

75 dB

Instrument Inputs Maximum Level

+21 dBu (Unbalanced, Minimum Gain)

Line Inputs Dynamic Range

118 dB (A-Weighted, Minimum Gain)

Line Inputs Frequency Response

20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)

Line Inputs Gain Range

± 10 dB

Line Inputs Impedance

10K Ohms

Line Inputs Maximum Level

+18 dBu (Balanced, Minimum Gain)

Line Inputs Total Harmonic Distortion

0.001% (1 kHz, Minimum Gain)

Microphone Input Connection Type

XLR Female (Combo), Balanced

Microphone Preamp Dynamic Range

116 dB (A-Weighted, Minimum Gain)

Microphone Preamp Equivalent Input Noise

-130 dBu (Maximum Gain, 150 Ohms, 20 kHz BW, A-Weighted)

Microphone Preamp Frequency Response

20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)

Microphone Preamp Gain Control Range

75 dB

Microphone Preamp Input Impedance

1600 Ohms

Microphone Preamp Maximum Input Level

+18 dBu (Balanced, Minimum Gain)

Microphone Preamp Total Harmonic Distortion

0.002% (1 kHz, Minimum Gain)

Outputs

Headphone Outputs Dynamic Range

118 dB (A-Weighted)

Headphone Outputs Frequency Response

20 Hz to 20 kHz, +/- 0.3 dB (Unity Gain, Reference 1 kHz)

Headphone Outputs Impedance Working Range

33 Ohms

Headphone Outputs Maximum Output

11 dBu (50 Ohms)

Headphone Outputs Total Harmonic Distortion

0.001% (1 kHz)

Line Outputs Connection Type

1/4" TRS Female

Main And Line Outputs Dynamic Range

123 dB (A-Weighted)

Main And Line Outputs Frequency Response

20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)

Main And Line Outputs Maximum Level

+18 dBu (Balanced)

Main And Line Outputs Output Impedance

51 Ohms

Main And Line Outputs Total Harmonic Distortion

0.001% (1 kHz, +4 dBu)

Main Outputs Connection Type

1/4" TRS Female

Hardware

MIDI IO

5-Pin Female DIN

Word Clock IO

BNC Connector, 4.5 Vpp @ 75Ω Load

Dimensions

Width

30.48 CM

Height

30.48 CM

Depth

8.6" (218 mm)

Weight

5.56 KG

Included Accessories

DB-9 breakout cable, 1.5M USB-C to USB-C cable
