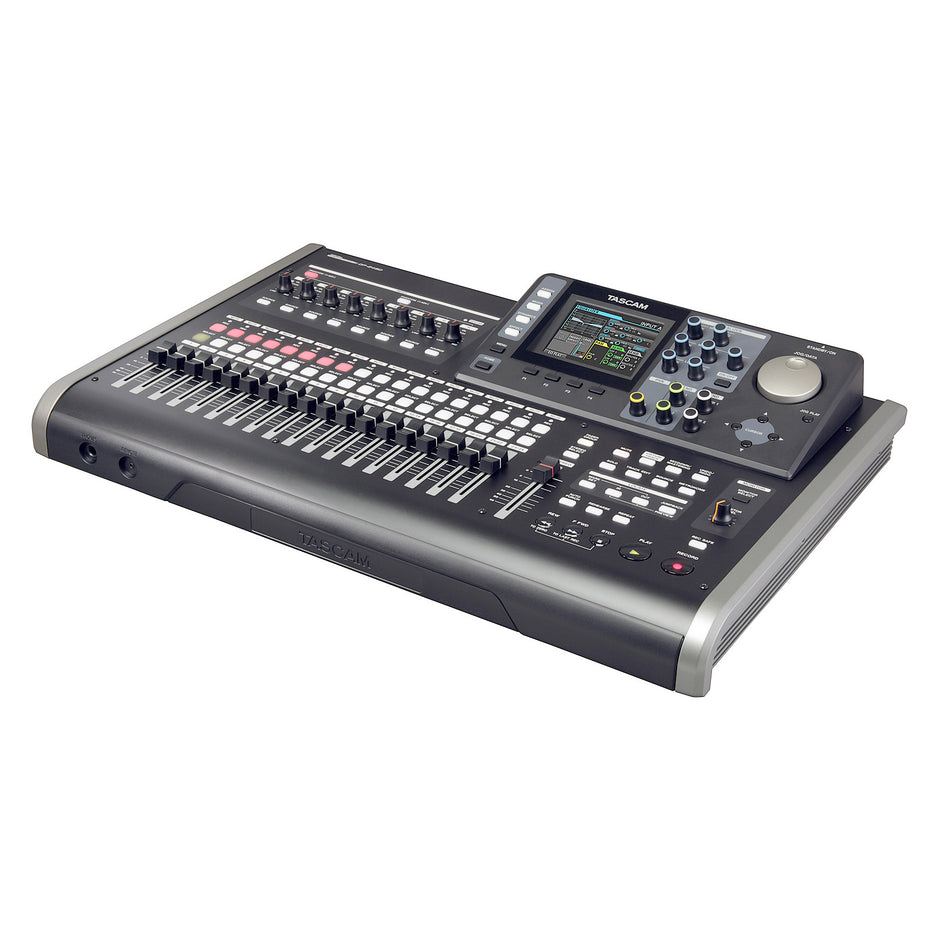

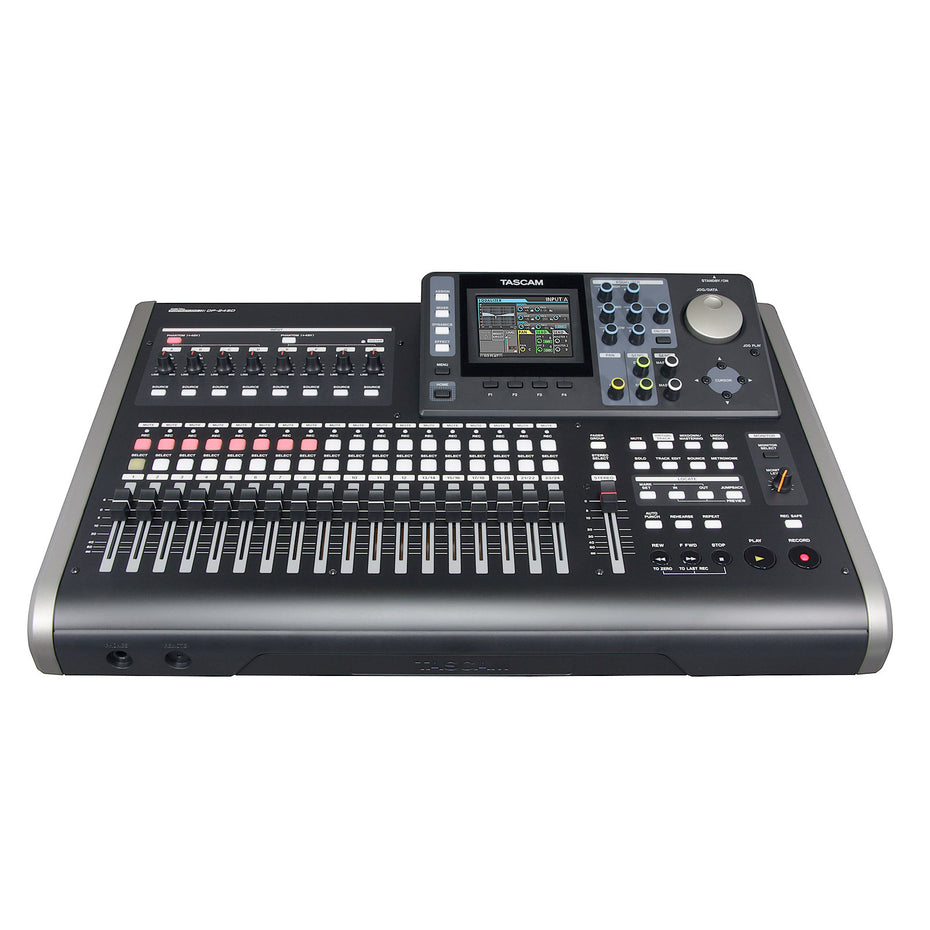

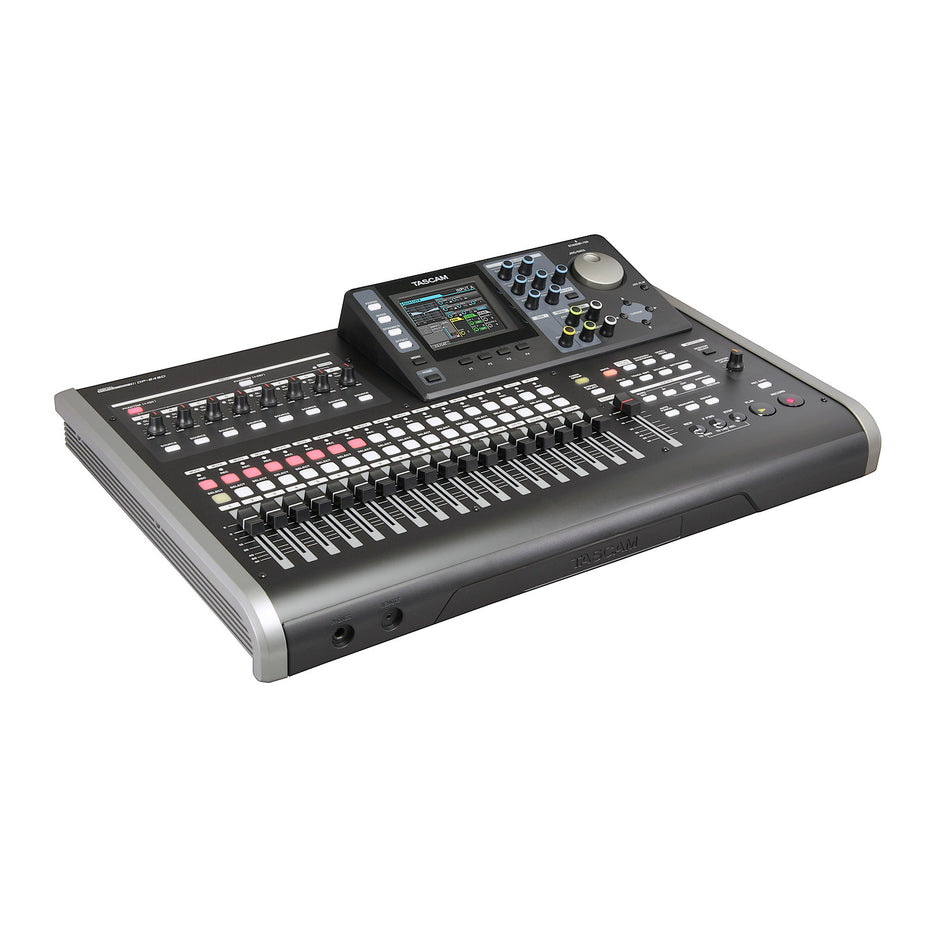

Tascam SP-24SD 24-track digital portastudio

Stock code: Tascam DP-24SD new
  • Instrument-level input for direct recording of guitar or bass
  • Phantom power supplied on all inputs (switchable A–D, E–H)
  • Dedicated controls for EQ, pan and effect sends
  • 8 virtual tracks per track for alternative takes
  • Dynamics effects for input (Limiter, Compressor, Noise Suppressor, Exciter)
  • Solid-state recording to SD cards for better shock resistance than hard drive recording
  • Purchase in store
  • Click & Collect
  • Order online
  • Order by phone

This item is not usually kept in our Haslemere showroom.
Available for delivery, or Click & Collect.

£421
RRP £489.99
£350.83 ex. VAT
Currently out of stock
Contact us for more information
We usually receive stock in the expected timeframe but this can take longer for more specialist items or at busy times of year.

When you place an order, we will contact our suppliers and notify you via email with a more accurate estimate.

If your order is urgent please contact us before checkout to make sure that we can meet your deadline.
  • Info Full description
  • Spec Specification
Info Full description

Introducing the Tascam DP-24SD digital portastudio

The DP-24SD is a 24-track Digital Portastudio with solid-state recording, a colour LCD and channel strip controls to make recording simple so you stay creative. Up to eight tracks can be recorded at a time through its combination XLR and 6.3-mm combo jacks. Input processing like compression and limiting are available during recording, as well as guitar amp simulation and multi-effects for use with the instrument-level input.

Once recorded, tracks can be viewed on the large display and mixed with dedicated mixing controls like nineteen linear faders and a dozen channel strip encoders. Two mixdown effects including reverb and chorus are also available, as well as a mastering effect. Once finished, songs can be transferred to computer over USB for further processing or sharing with other people.

Plenty of recording options

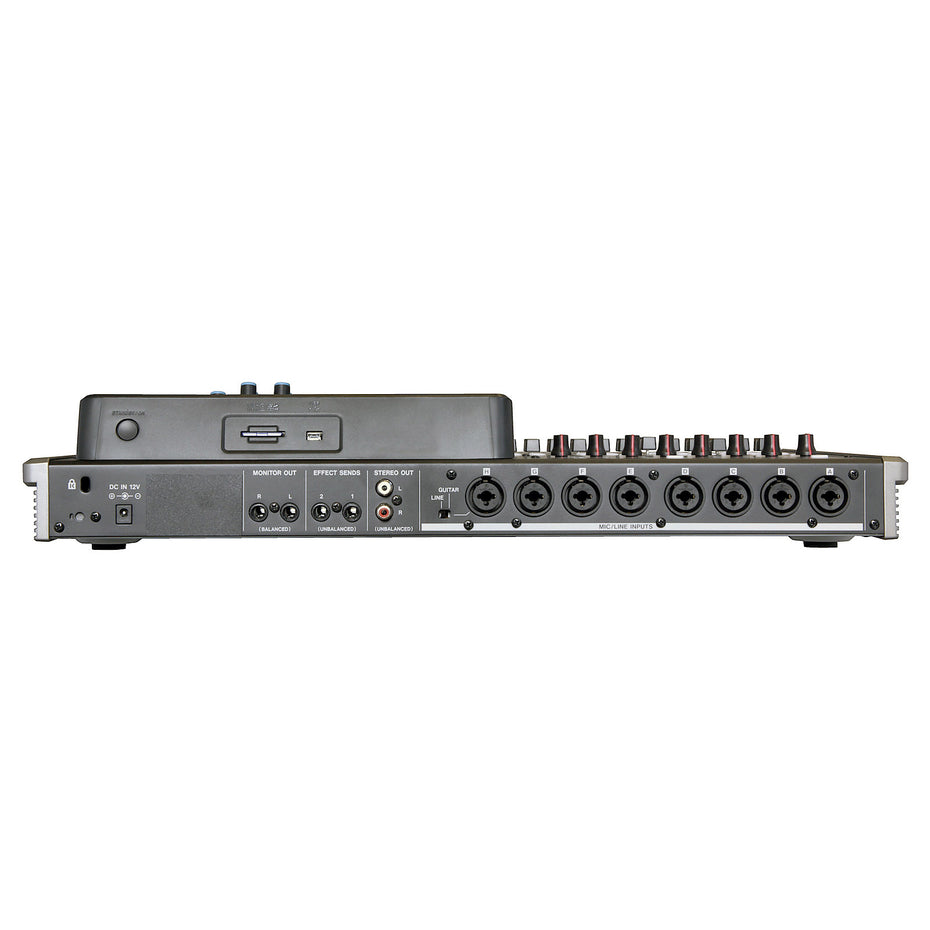

The DP-24SD has eight XLR-TRS combo inputs. You can record up to eight sources at one time and use up to 24 tracks for playback and mixing. Electrical guitars and basses can be connected directly to input H when set to GUITAR.

The semi-parametric equalizers for each track and each input are independent from other effects so you can control the sound of each track like any professional sound engineer. There’s even a Q control to manipulate the bandwidth of a certain frequency range.

Easy to operate

An 8.9-cm (3.5") LCD screen and self-illuminated buttons make it easy to view your entire creative process. Whether you press SOURCE and SELECT buttons to assign an input to a track, or use the REC and MUTE buttons to enable recording or mute a track – you are always aware of the situation, even with little ambient light.

12 rotary knobs are linked to the LCD through their colour-coding to quickly control settings such as EQ, PAN, effect send and other related parameters.

Create your own sound

You can use up to eight dynamics effects at once, one for each input source. Choose from Compressor, Noise Suppressor, De-Esser and Exciter. For example, utilize the built-in compressor for your bass, guitar and drums tracks. There are also guitar multi-effects including Noise Suppression, Amp Simulation, Compression, Chorus, Flanger, Phaser, Tremolo, Auto Wah, and Delay. And you can use effects like Reverb, Delay and Chrous for any track by using its SEND knob.

You can create a master track without using a computer with the DP-24SD’s mastering tools. You will find a 3-band equalizer, a 3-band compressor and a normalize function for adjusting peak amplitude.

Solid-state media

The DP-24SD utilizes SD/SDHC cards as recording media which are maintanance-free and provide secure shock resistance due to the absence of any moving parts. If you need more recording space, simply put in a new SD card.

File format is FAT 16 or FAT 32, so you can access your recorded files on your computer when connected via USB. You can also import audio files recorded elsewhere to mix them with your Portastudio files.

To find out more about how we can help, or to or to discuss your requirements, please contact our sales department today:

Phone (01428) 658806 Email sales@
chamberlainmusic.com
Spec Specification
Media and file systemsRecording mediaSD card (512 MB to 2 GB)
SDHC card (4–32 GB)
Analogue audio inputs and outputsMIC/LINE INPUTS A to H
XLR connector (balanced)XLR-3-31 (1: GND, 2: HOT, 3:COLD)
Input impedance2.4 kΩ
Nominal input level–14 dBu
Maximum input level+2 dBu
Phone connector (balanced)6.3-mm TRS phone jack
Input impedance>22 kΩ
INPUT H, when LINE-GUITAR switch is set to GUITAR: 1 MΩ
Nominal input level+4 dBu
Maximum input level+20 dBu
Stereo output (L/R)RCA pin jack
Nominal output level–10 dBV
Maximum output level+6 dBV
Output impedance200 Ω
Effect sends 1/26.3-mm TS phone jack
Nominal output level–10 dBV
Maximum output level+6 dBV
Output impedance200 Ω
Monitor output L/R6.3-mm TRS phone jack
Nominal output level–2 dBu
Maximum output level+14 dBu
Output impedance200 Ω
Headphones output6.3-mm TRS phone jack
Maximum output power70 mW + 70 mW or more (THD + N 0.1% or less, 32 Ω load)
Control inputs and outputsUSB portUSB 4-pin mini-B type
FormatMass Storage Class USB 2.0 High Speed
Remote connector2.5-mm TRS jack
Audio performanceFrequency response20 Hz to 20 kHz, +1 dB/–1 dB INPUT (MIC/LINE) to STEREO OUT/EFFECT SENDS/MONITOR OUT
Distortion≤0.01% INPUT (MIC/LINE) to STEREO OUT/EFFECT SENDS/MONITOR OUT
S/N ratio>90 dB INPUT (MIC/LINE) to STEREO OUT/EFFECT SENDS/MONITOR OUT
Operating requirementsWindowsPentium 300 MHz or faster
128 MB or more memory
MacPower PC, iMac, G3, G4 266 MHz or faster
64 MB or more memory
Recommended USB portUSB 2.0
Recommended USB host controllerIntel chipset
Power requirements and other specificationsPower requirementsAC adapter (GPE248-120200-Z)
Power consumption12 W (Phantom power on)
Dimensions (W × H × D)514 × 101 mm × 337 mm
Weight6.2 kg
Operating temperature range5–35 °C
