The principle behind the Audiohub range is simple: – Audiohub products are designed to give musicians the optimum performance, flexibility and sound quality for any given audio application.
Audiohub equals flexibility – true to their name Audiohubs perform with ease in any amplification application – keyboards, electronic drums, vocals, acoustic and electric string instruments as well as playback are all handled with ease.

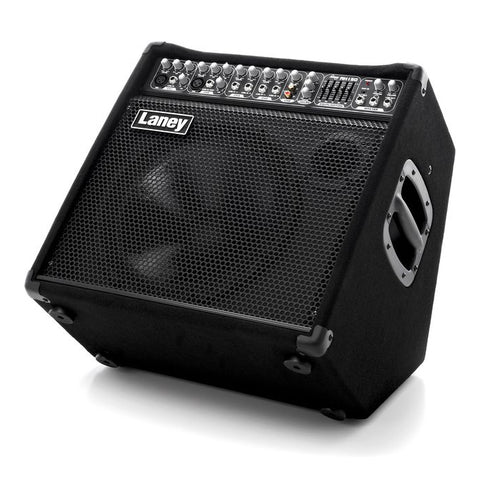

The AH150’s 5 Channels means that this unit is ideal as a small portable trio’s PA. It handles vocals, guitars, keys and electronic drums without any problem at all, with every input you could want catered for. Each channel has independent gain, two band EQ and an independant effects send to the on-board DSP. With a line-in and record-out option, the AH150’s master section allows you complete control over the unit’s performance. Rated at 150 Watts RMS and housing a 1 × 12” Custom Designed Driver and HF Horn the AH150 cuts an imposing line.
Audiohubs sound great – they are powerful and true – what you put in you get out but louder, much louder. They sound clean and clear and should you wish to, the onboard EQ’s are powerful enough to dial out difference from venue to venue, meaning you get the best sound every time, all the time.
|Cabinet||Carpet covered, dual position kickback|
|Level||Treble (Ch 1 & 2), Bass (Ch 1 & 2), FX Level (Ch 1 - 4)|
|Ch 1||Balanced XLR/Unbalanced Line|
|Ch 2||Balanced XLR/Hi-Z Instrument|
|Ch 3 & 4||Stereo Unbalanced|
|Line Ch 5||RCA Line input|
|Drivers||1 x custom designed 12" loudspeaker & HF horn|
|On-board Digital Delay||With Feedback, Time & Level controls|
|EQ||Master 5 band graphic|
|Footswitch option||FS 1 (not supplied)|
|Headphone socket with level control||Included|
|Jack Inputs on all channel||Included|
|XLR input on CH1 & CH2||Included|
|Kick proof metal grill||Included|
|Master effects level controls||Master section consisting of Master FX, Volume and Phono levels|
|Speaker connections||Minimum 8 Ohms|
